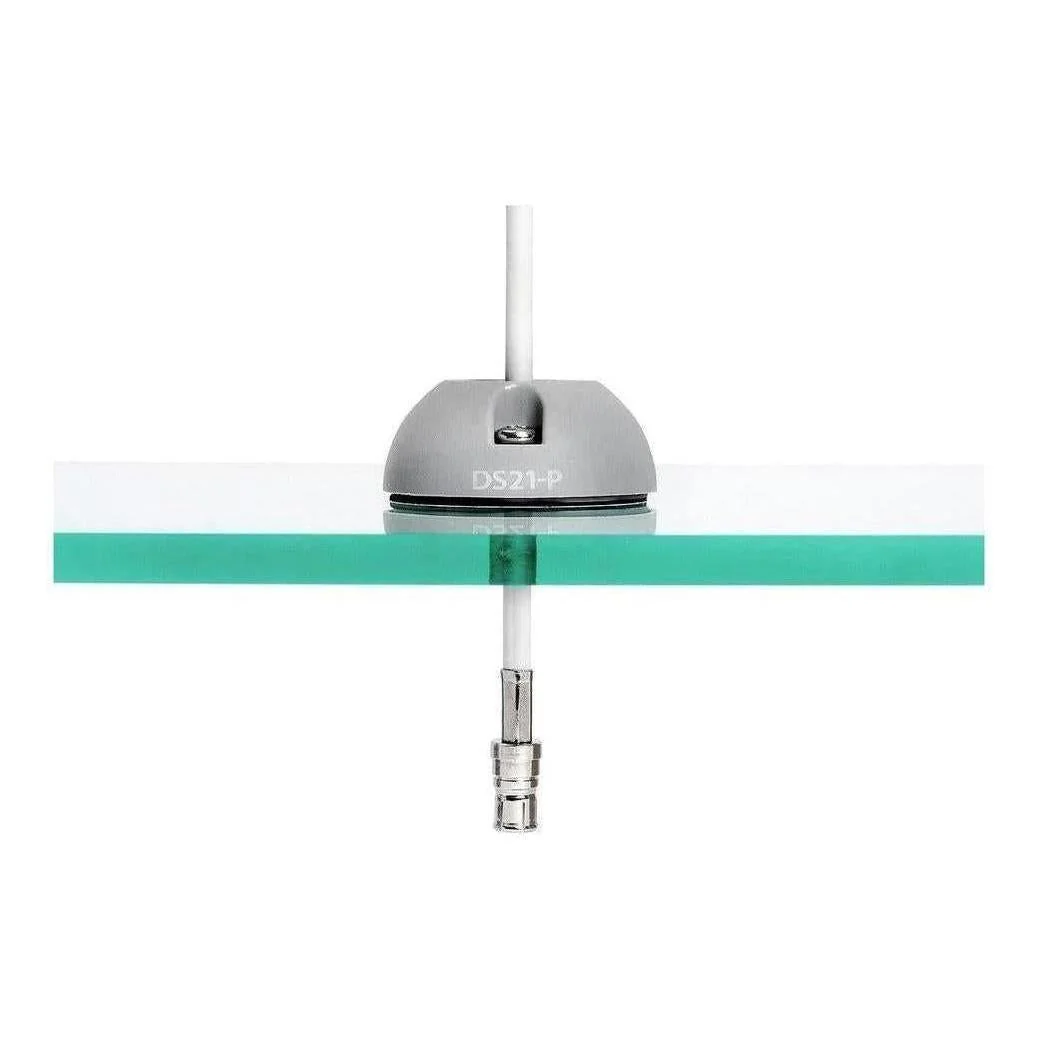

Designed for cables from 4-9mm (0.16"-0.35") and connectors up to Ø21mm (0.82"). The aesthetic dome-shaped profile provides a stronger, impact-resistant design, and captive nuts in the base make for an easy assembly.

Multi-Functional Dome Shape
The aesthetic dome-shaped profile provides a stronger, impact-resistant, and additional water shield.

Watertight Installation
The tapered bung is supplied with a closed base seal, to form a watertight seal, ensuring an IP68-rated watertight seal.

Easy and Reliable Installation
Captive nuts make for easy assembly and also allow reliable repeat installations. Each unit is supplied with both pre-drilled and blank inner seals to make your installation as easy as possible.

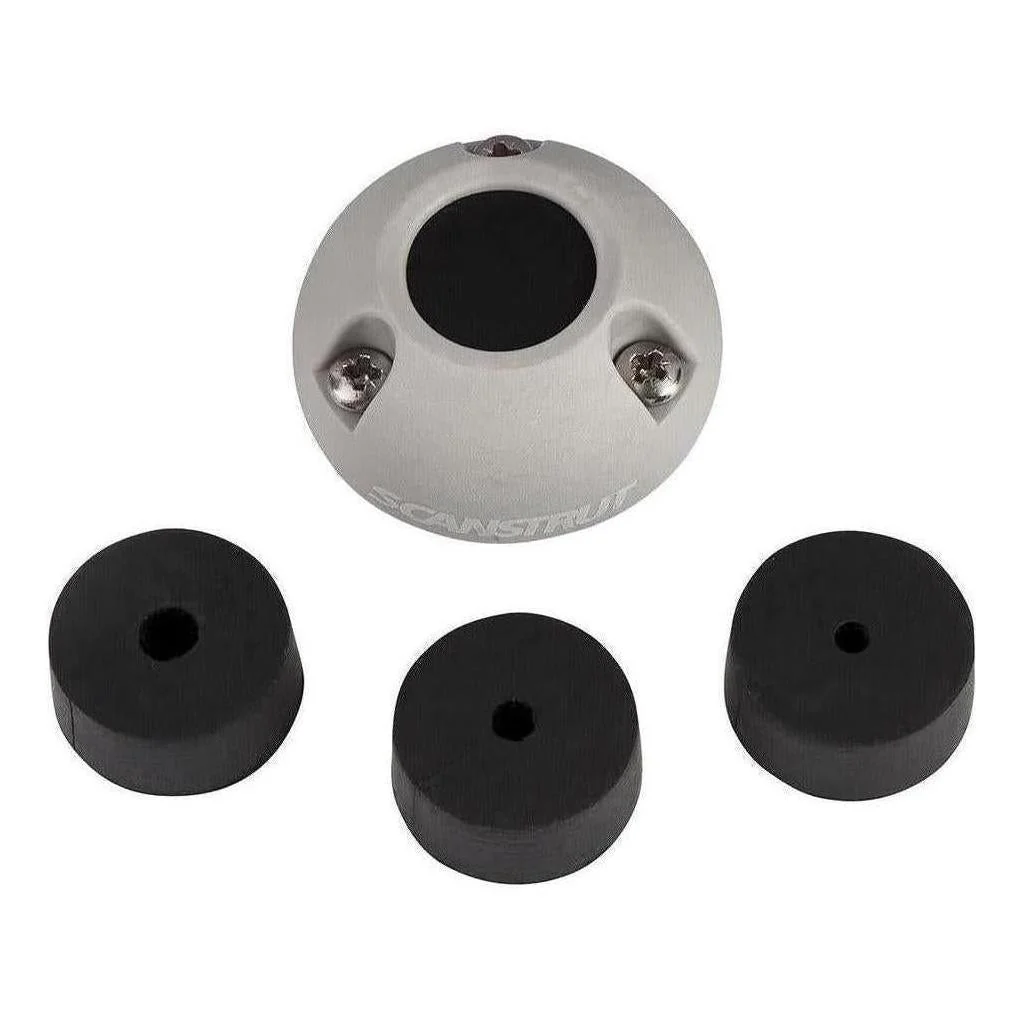

Split Bungs
The split-seal option makes installation even easier, as it does not require connectors up to Ø21mm (0.82") removal during installation.

Key Features

IP68 waterproof rated
Made from premium marine-grade UV-stable materials
Includes 316 stainless steel fixings and a waterproof 3M gasket
Captive nuts ensure an easy and reliable repeat installation
No messy sealant on bungs
Split bungs for ease of installation
Install connectors up to Ø21mm (0.82") in diameter
Fully customizable with self-drill bung options

Technical Specification

Material	High Impact Plastic
Height	20.5mm (0.81")
Colour	Grey
Diameter of Cable Seal	49mm (1.93")
Diameter of Cable	4 - 9mm (0.17 - 0.31")
Bungs	1 x 4mm (0.16") / 1 x 5mm (0.20") / 1 x 7mm (0.28") / 1 x Self drill
