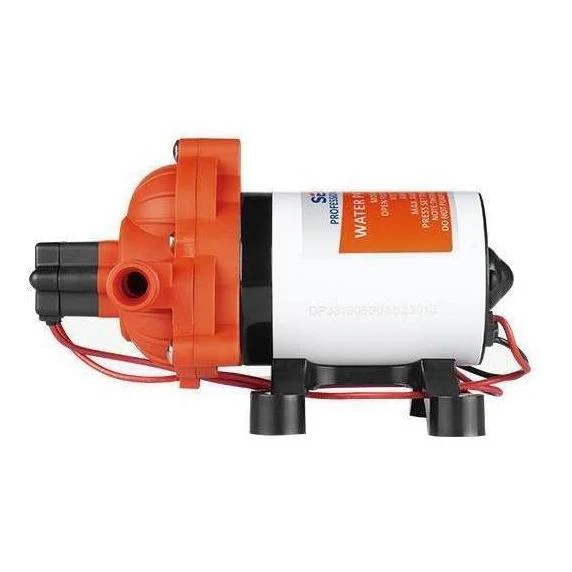

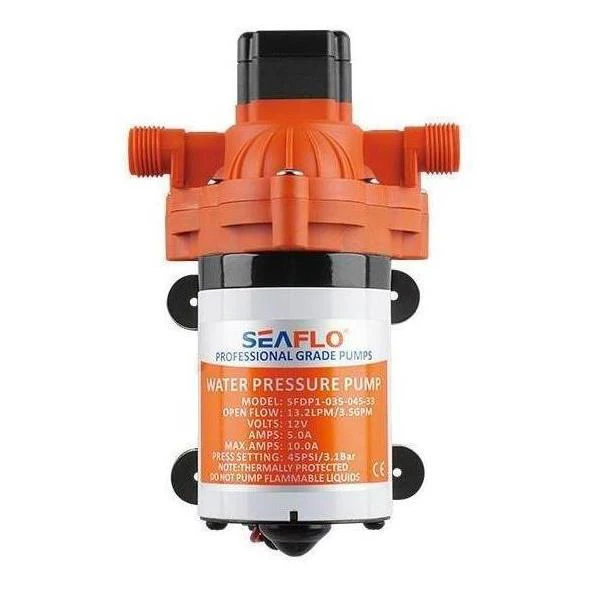

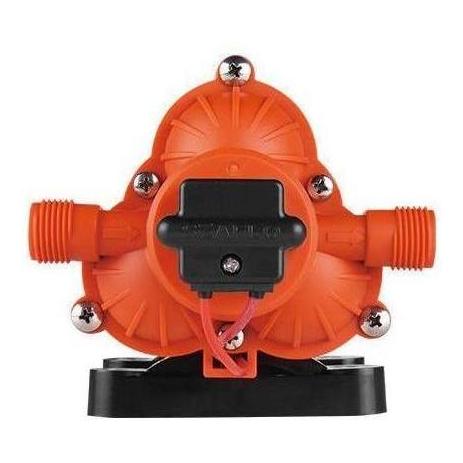

Seaflo 33 Series Diaphragm Pump 220V 11.3LPM @ 45PSI

The 33-Series is our general-duty on-demand positive displacement pump. It provides reliable performance in high water flow, moderate pressure applications. This 3-chamber diaphragm pump provides up to 3.0 gallons per minute and is capable of self-priming up to 6vertical feet, and can run dry without damage. Serves 3 or more 1/2” (13 mm) outlets. This automatic demand water system pump has a built-in pressure switch, which automatically starts and stops when the faucet is opened and closed. They're easy to install, service and winterize.

Specifications

• Voltage：12V/24V/115V/220V
• Open Flow：2.8-3.0GPM / 10.6-11.3LPM
• Shut-off Pressure：45PSI / 3.1BAR
• Priming Capabilities：6 feet (1.8 m) suction lift
• Max Recommended Temperature：140° F (60° C）Max.
• Material：EPDM(Valves) / Santoprene(Diaphragm)
• Ports：1/2"-14 MNPT

MORE FEATURES & BENEFITS

•  Capable of supplying 2-3 fixtures

•  Up to 3.0 GPM

•  Self priming

•  On-demand use

•  Industry Standard mounting pattern

•  Completely rubber mounting-base

•  Adjustable pressure switch

•  16 AWG, 4.5"(11.4 cm) long Leads

•  2 Year Warranty

•  Meets or exceeds RoHS, SGS, and ISO standards
